Device for fast and equal application of adhesive on the tiles

Name: Device for fast and equal application of adhesive on the tiles
Brand: NetYou
SKU: NetYou II 800
Price: 549 PLN
Availability: InStock

NetYou II 800 - Device for fast and equal application of adhesive on the tiles

Product number: NetYou II 14x10-800

In stock

Size of notches: 14x10 mm

8x8 mm
10x10 mm
12x12 mm
14x10 mm
20x15 mm

Max width: 80 cm (~32" in)

80 cm (~32" in)

Price:

zł 549

No tax

Quantity:

In stock

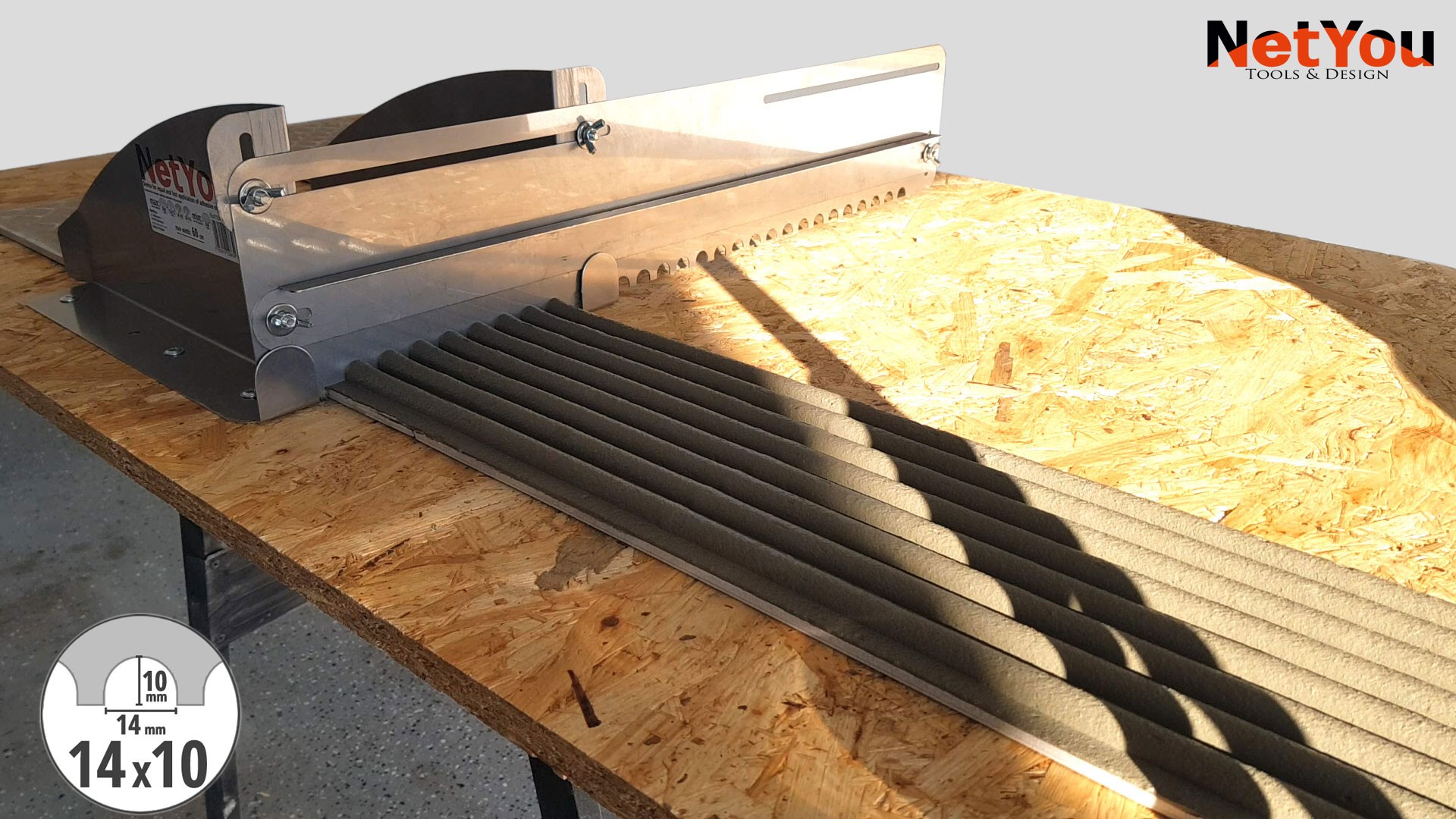

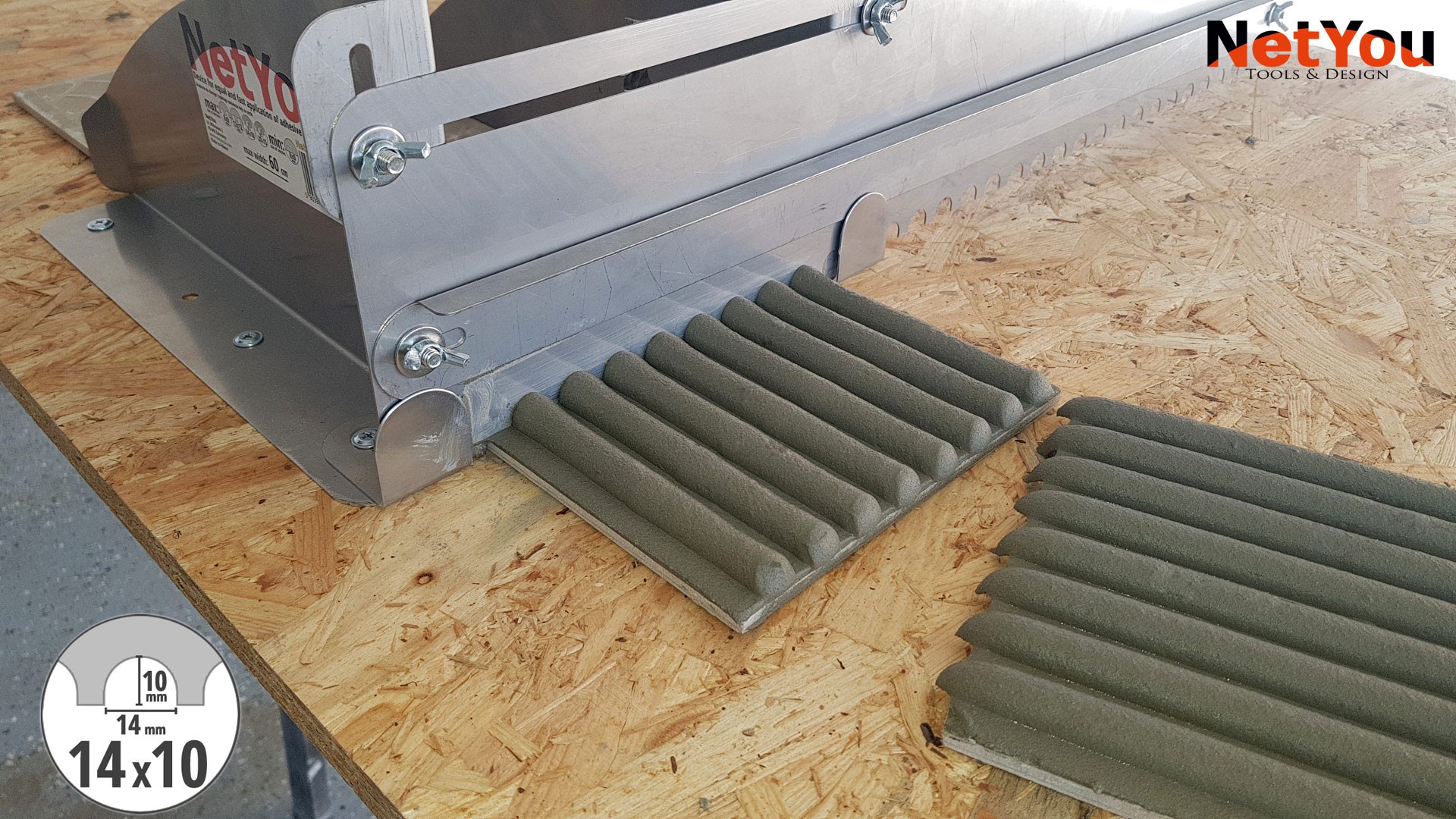

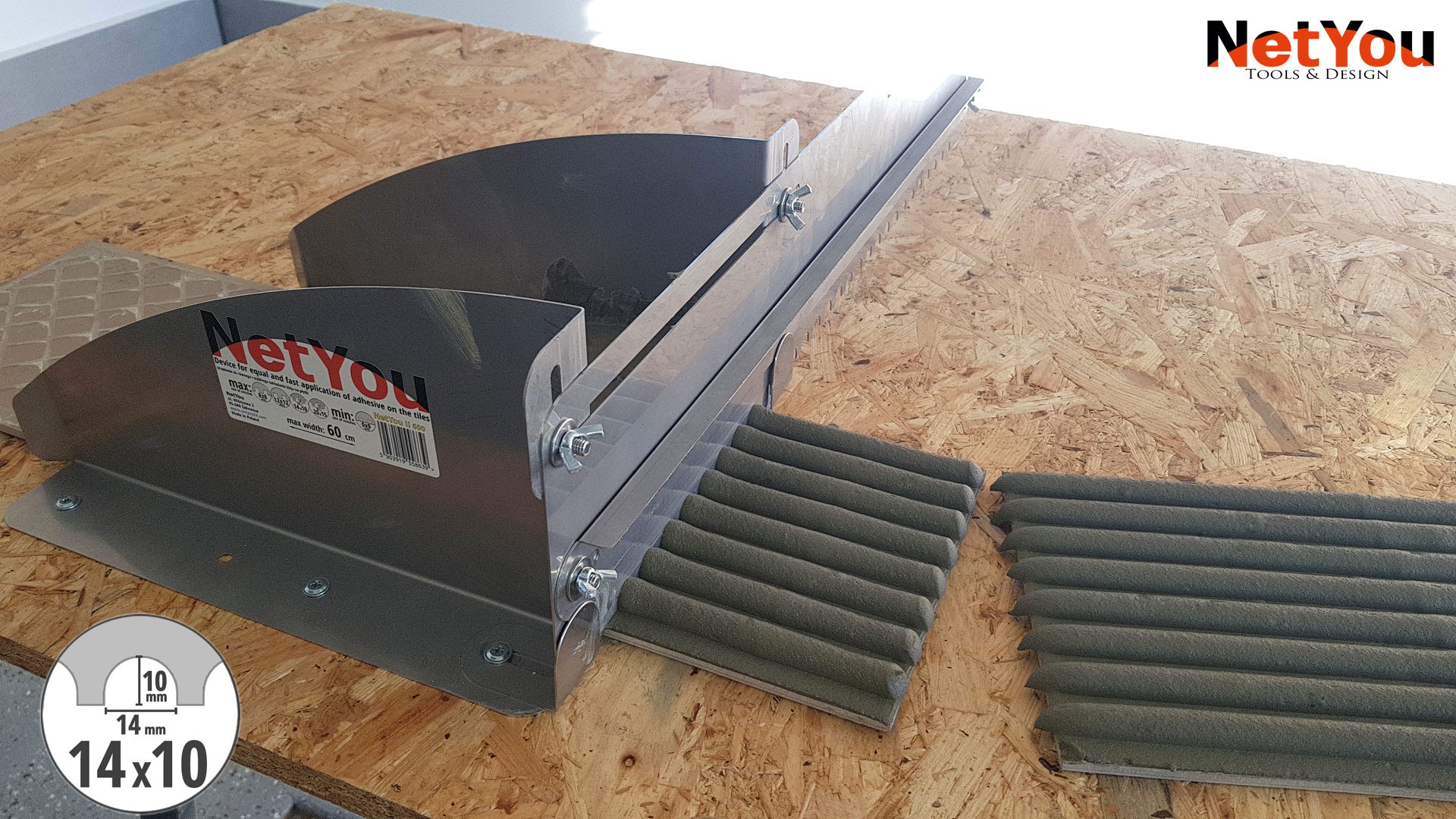

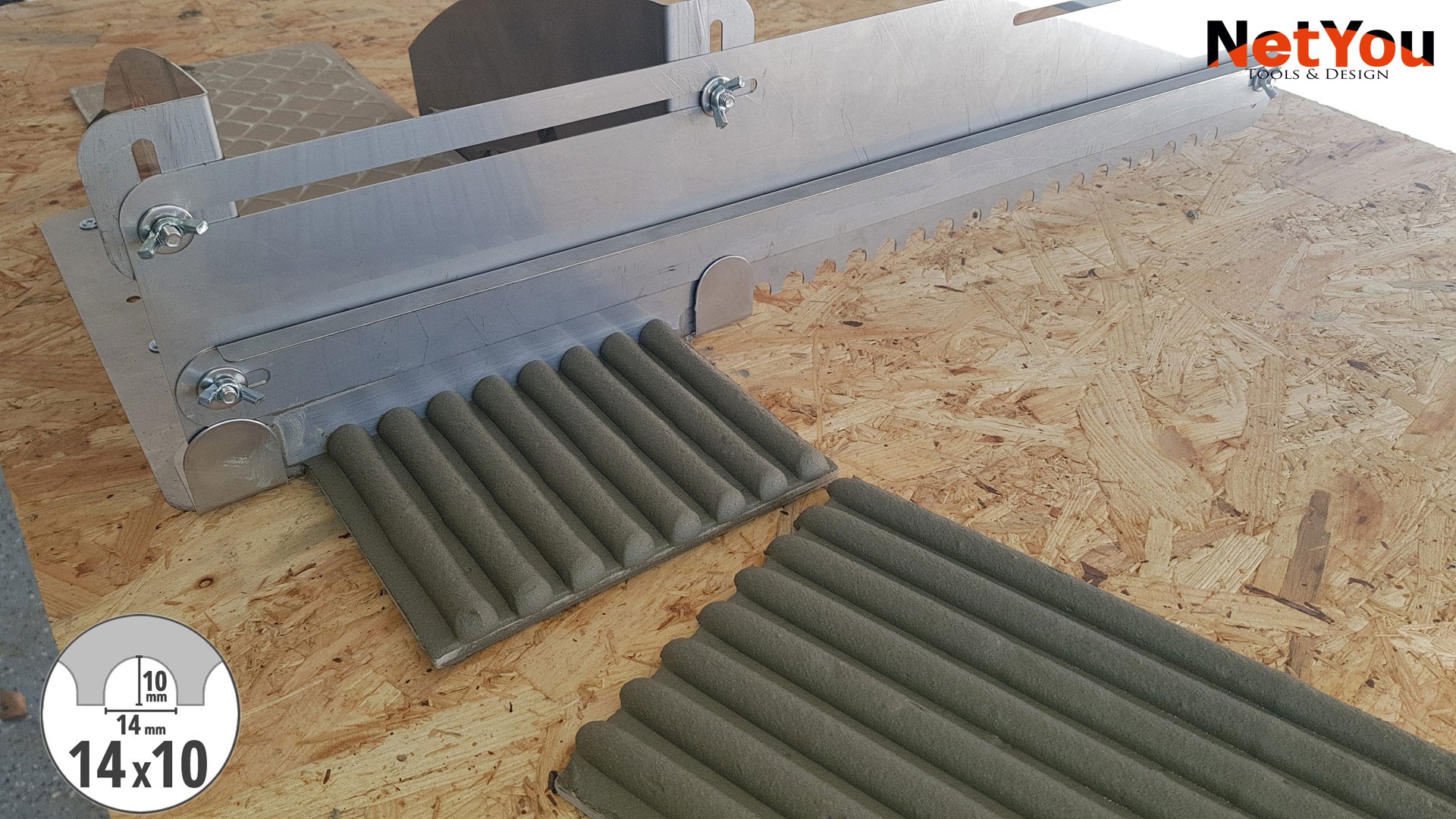

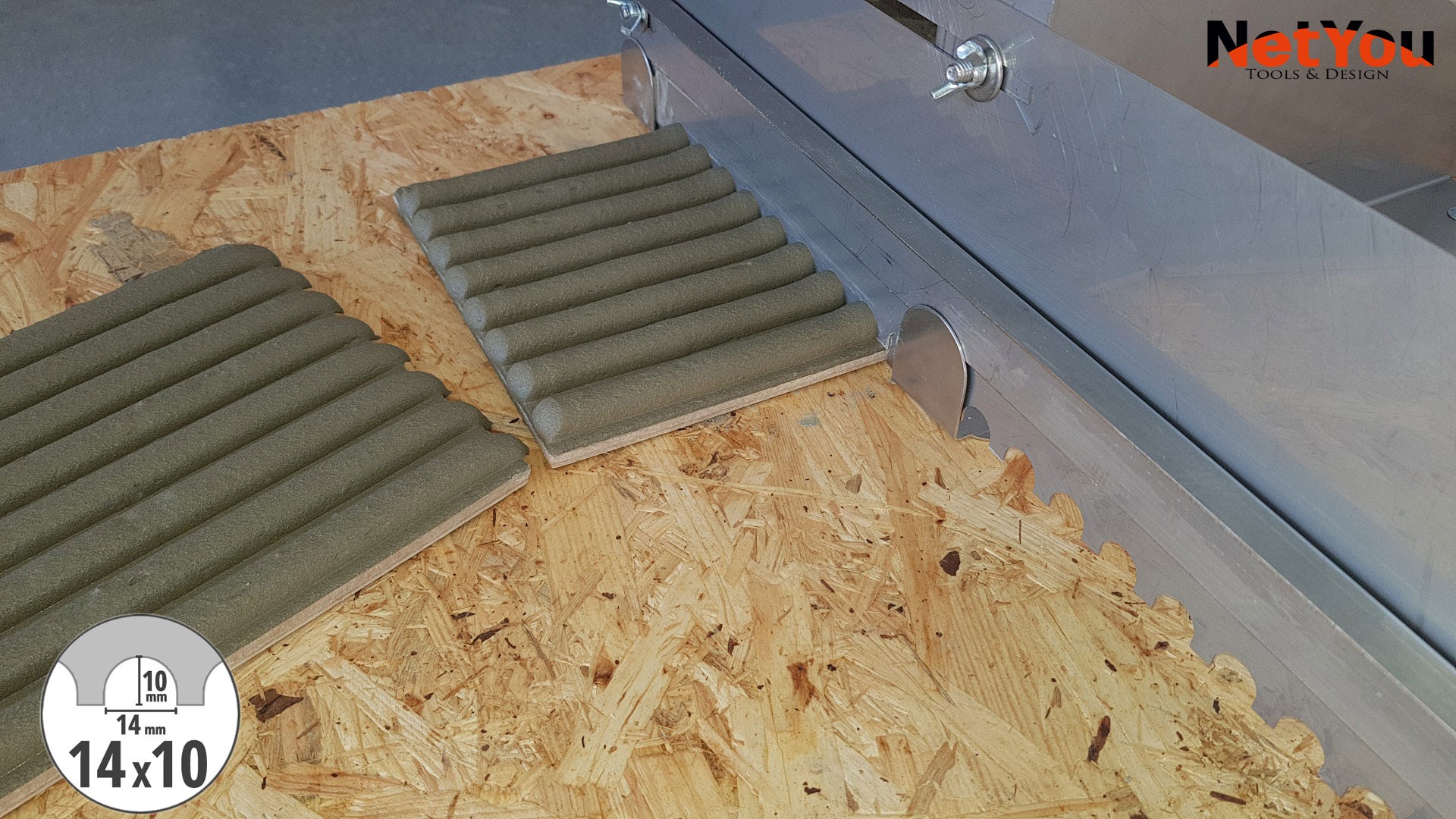

A device for quick and even application of glue on ceramic tiles, stoneware, clinker, stone, parquet, polystyrene, XPS polystyrene, etc.

Much faster application of glue on the tile than the traditional method! Over 100 m² in one day - now it's possible!

A complete set for the tiler ready to work.
The entire surface is thoroughly covered with glue of the same thickness. (devices for applying glue to the floor in a separate offer).
Tile leveling reduced to a minimum.
Smooth regulation of the amount of tile adhesive (height of the comb, thickness of the applied layer).
Easy to use (assembly only requires a screwdriver).
Adjustable notched trowel for glue easy to wash .
Safe in transport (all edges except teeth are rounded).
Durable, strong and rigid construction.

Before starting work

The device must be fixed to a flat surface that can be tightened, which will not scratch the tile (OSB board, wooden plywood, plasterboard, wooden top, etc.).
The device can also be attached to a table specially designed for this purpose, which is in a separate offer ( NetYou Table )
Set (tighten) the sides of the device to the ground, keeping the minimum clearance between the plate ( fixing screws included ).
Position (tighten) the comb over the plate. Place the comb on 1 mm feeler gauges before tightening ( feeler gauges included ).
If we apply glue to the tile with a comb - lift the comb stiffening bar .
If we apply the glue on the tile "smoothly" - lower the comb stiffening bar (remember about the 1mm gap above the tile).
After tightening all the screws, the plate should move freely back and forth.
Tighten the lower comb locks.

pobierz pdf Assembly instructions (step by step)

Product number: NetYou II 14x10-800
Weight: 2.95 kg
Max width: 80 cm (~24" in)
Material: Acid-resistant stainless steel sheet
Sheet thickness: 1 mm
Place of production: Poland
In stock: 3 Items
EAN13: 5904347115197
MPN: NetYou21410800

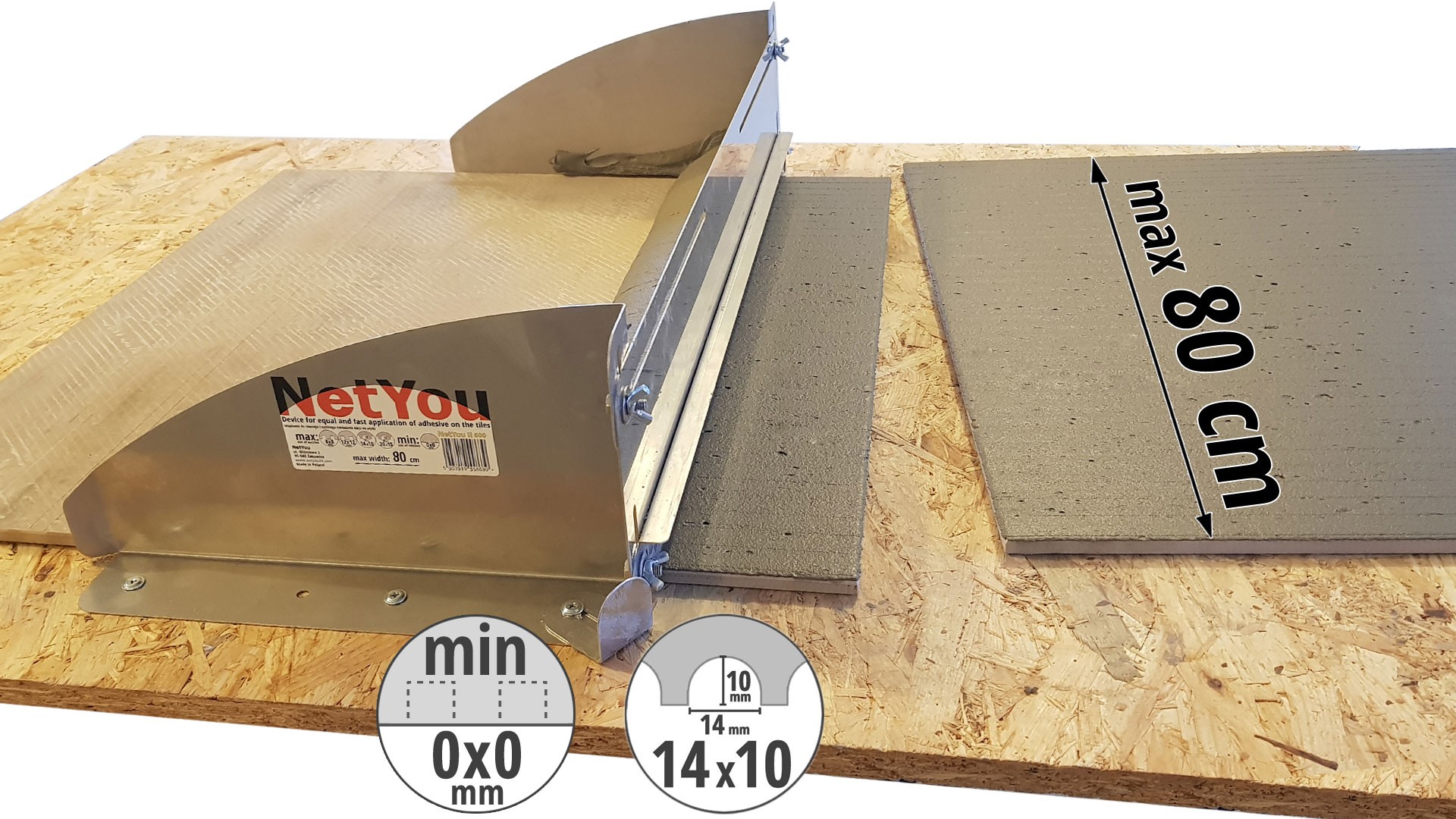

The width of the applied adhesive layer (NetYou II 800): min 0, max 80 cm
The minimum size of notches (smooth adjustment): min 0x0 mm (application of tile adhesive without notches)
The maximum size of notches (smooth adjustment): max: | 8x8 mm | 10x10 mm | 12x12 mm | 14x10 mm | 20x15 mm | (one size to choose from when purchasing)
Thickness of the applied adhesive layer (notches height above the plate):: min 0 max approx 30 mm (depending on the thickness of the tile)

Download

Assembly instructions (PL) - on any flat surface (5.56MB)

Assembly instructions (EN) - on any flat surface (5.55MB)

Assembly instructions (PL) - on the NetYou roller table (7.07MB)

Assembly instructions (EN) - on the NetYou roller table (7.06MB)

Video: NetYou II 800

Previous version:
